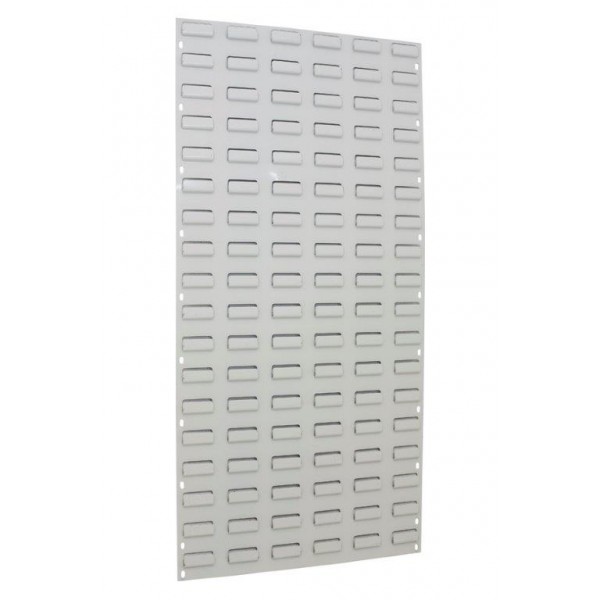

EZR Louvred Panel - H952mm
 Width: 460mmWidth: 610mm

EZR Louvred Panel - H952mm

Our Price:  £23.00(£27.60 Inc. VAT)

Part Code:  JWEZLWP02
Delivery:  3 Working Days



These affordable louvre panels can be used to create practical and efficient wall storage for your plastic picking bins. We offer the most popular height panel which is just over 3ft tall (952mm) and you can choose from 2 different widths to suit your requirements. Need it taller or wider, simply order more panels and fix them above/below or next to each other to cover the area of wall you have available.

Plastic storage bins simply hook on to the relevant number of louvres (see data table - right) allowing you to position your boxes exactly where you need them.

  • 952mm high
  • 460 or 610mm wide panels
  • Epoxy RAL 7035 grey finish
  • Made from 1.5mm steel plate
  • Fixing holes provided for easy attachment with screws or bolts (fixings not included)
  • Reinforced louvres
  • Overall panel thickness: approx. 7mm

Normally delivered from stock in 3-5 working days, lead times may be slightly longer on orders of more than 6 panels.

Note: Styles may vary from that shown.

Order Code Number of Louvres (H x W) Height Width
JWEZLWP02 108 (18 x 6) 952mm 456mm

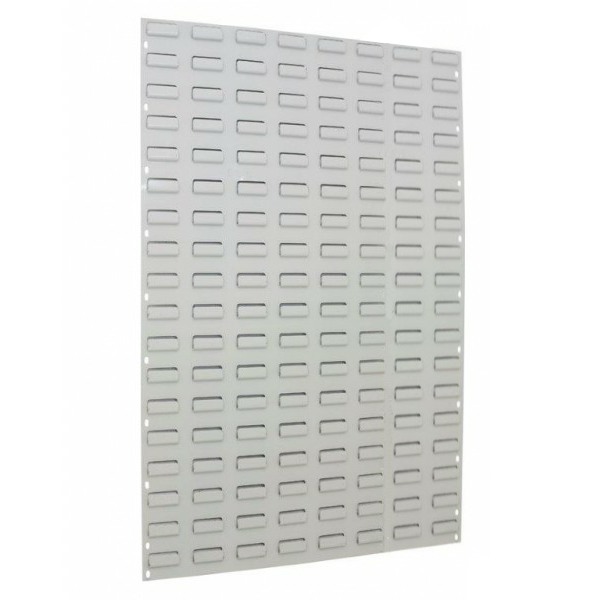

JWEZLWP10 144 (18 x 8) 952mm 610mm



Delivery Cost

Delivery is FREE for orders over £400.00 ex-VAT

Smaller orders are subject to a charge according to the goods value (ex VAT), as below.

Goods Value (ex. VAT) Delivery Charge
£0 - £49.99 £8.00
£50 - £99.99 £12.00
£100 - £149.99 £15.00
£150 - £199.99 £20.00
£200 - £249.99 £25.00
£250 - £299.99 £30.00
£300 - £349.99 £35.00
£350 - £399.99 £40.00
£400+ FREE

The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.

Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Delivery Areas

Mainland UK – England, Wales and Southern Scotland.

Other UK – Please call for a quote if you live in any of the following areas:

BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50


Please call 01993 779494 if you would like to collect your order from our warehouse.
