Pigeon Hole Storage Shelving
Pigeon Hole Storage Shelving

Pigeon Hole Storage Shelving

(£275.57 Inc. VAT)
Qty 2 - 5 Units 6 - 9 Units 10+
Price Save 5% Save 10% Save 15%
Part Code
3-5 Working Days
Post colours may be substituted when stock is low

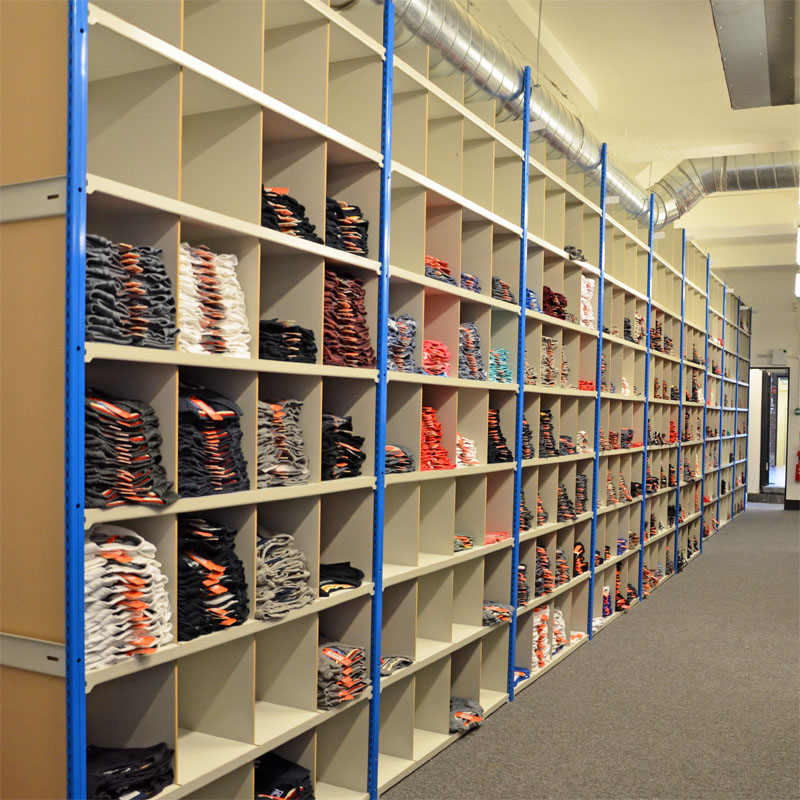

Staying organised within retail stockrooms and general storage areas is not always easy. Space is usually limited, stock can be going out as fast as it comes in and it can be hard to find items quickly. We feel your pain, but this Trimline pigeon hole shelving unit just might be the answer your storage problems.

Constructed from our popular Trimline shelving components, this pigeon hole unit not only provides a stable, strong and durable structure for your goods but also gives practically sized individual storage compartments. These cubby holes can be used to segregate different kinds of products or you could just give each SKU its own storage location to make finding items so much easier.

MDF side panels and full height dividers ensure that stock does not fall out of the sides or encroach into neighbouring sections but it is the mini shelf panels between these panels that give this unit its unique feature - unlike other pigeon hole systems you can adjust the height of each shelf level. The flexibility of being able to have different height compartments means that you can create taller rows of pigeon holes for your most popular or larger stock items

We offer a number of standard configurations , choose from 2 width options with either 5, 6 or 7 shelves to create a different number of total pigeon hole compartments. Choose starter bays if you want separate standalone bays that you can place exactly where you need them or use cheaper add-ons to save money when creating long runs of pigeon hole storage (starter bay always required).

The E-Z-Rect Trimline shelving system is designed for commercial applications and for individuals who recognise the value in a high quality, long-lasting storage system. Many of the UK’s leading retailers and fashion brands have upgraded to Trimline after being disappointed with inferior (cheaper) alternatives. Create your perfect stockroom today by ordering pigeon holes securely online or give us a call to discuss your requirements.

Pigeon Hole Assembly Instructions
  • Height: 1830mm (6ft)
  • 2 x shelf width options: 915 & 1220mm
  • Choose from 5, 6 or 7 shelf levels
  • 12, 15, 16, 18, 20 & 24 compartment bays available
  • Quick and easy boltless assembly
  • Shelf height adjustment every 25mm
  • 300mm wide compartments
  • Wipe clean melamine shelves
  • 130kg shelf loading (UDL)
  • Simple boltless assembly
  • Feet and top caps included
  • Range of sizes available, call for custom requirements

Click on the image link (right) to view our assembly instructions.

Update: New pigeon hole shelving trolleys are now available, contact us for further information.

Compartments (W x H) No. Shelves Compartment Size (approx.) Shelf Size

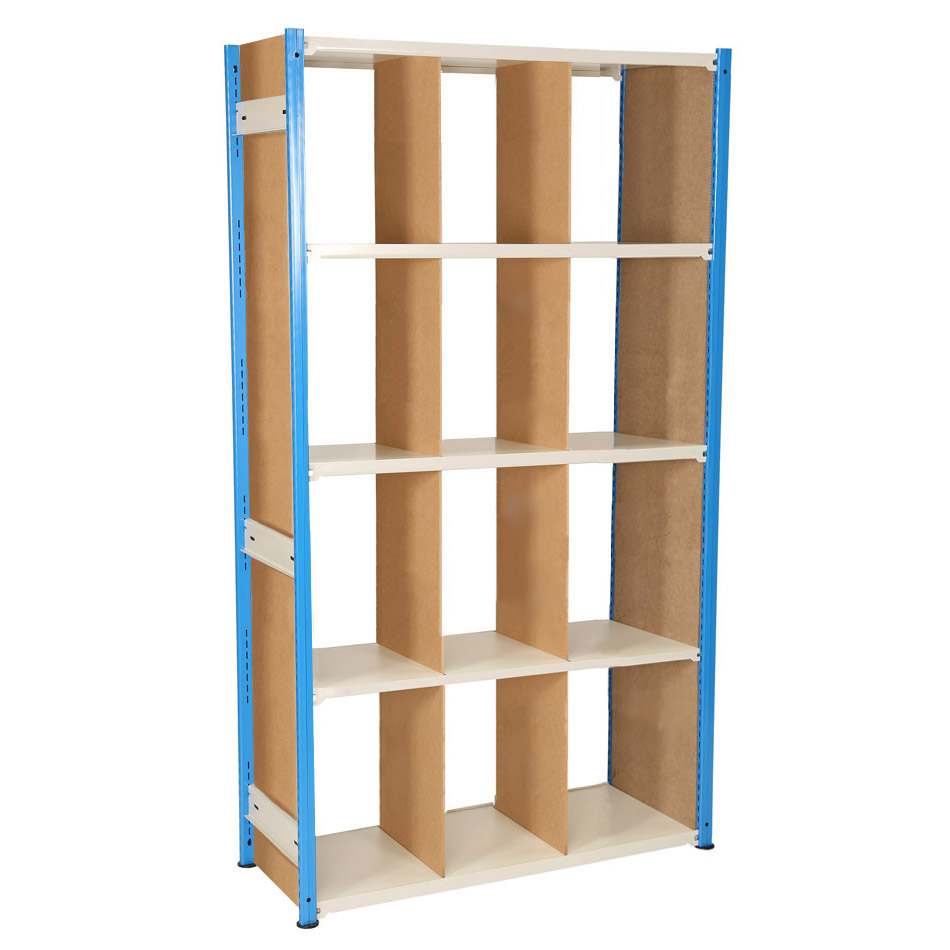

12 (3 x 4) 5 H400 x W300 x D380mm W915 x D380mm

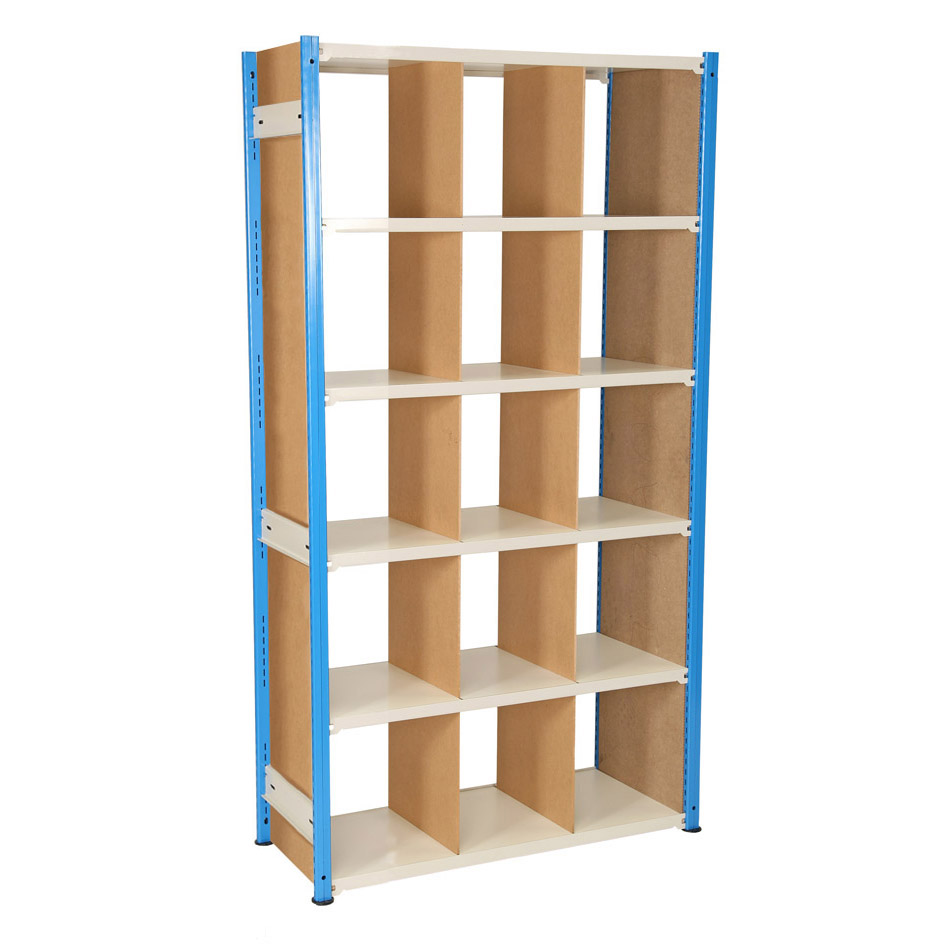

15 (3 x 5) 6 H320 x W300 x D380mm W915 x D380mm

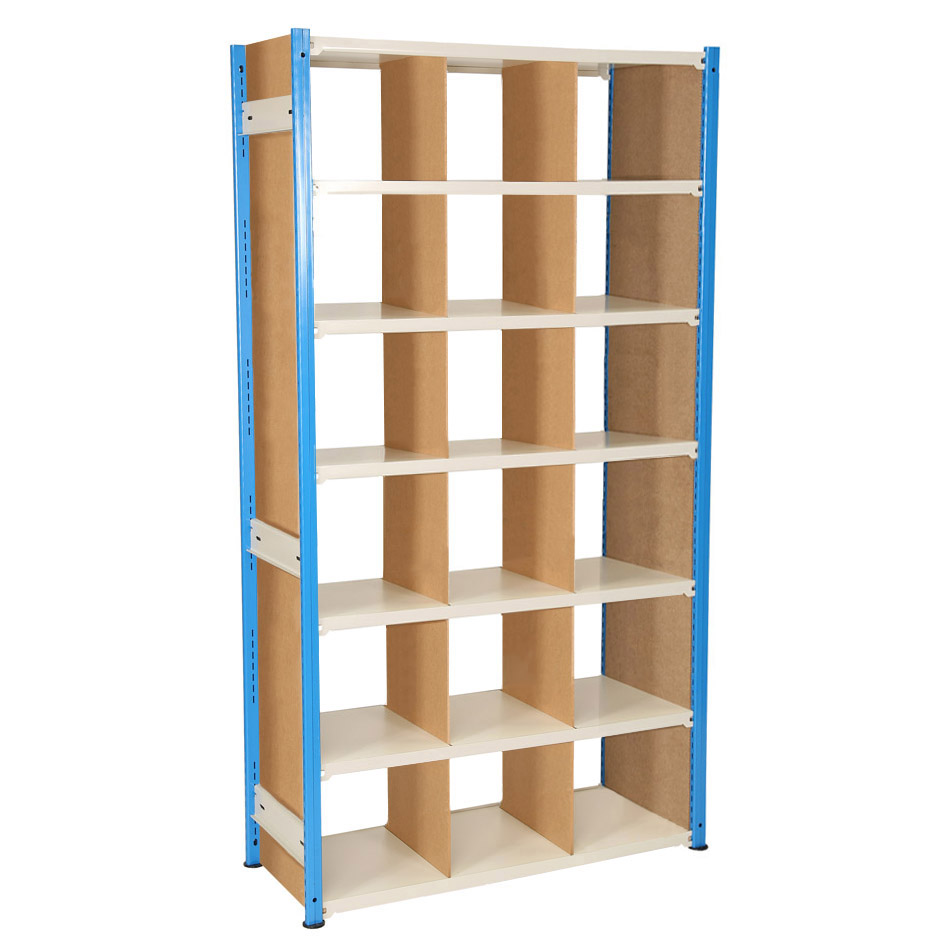

18 (3 x 6) 7 H240 x W300 x D380mm W915 x D380mm

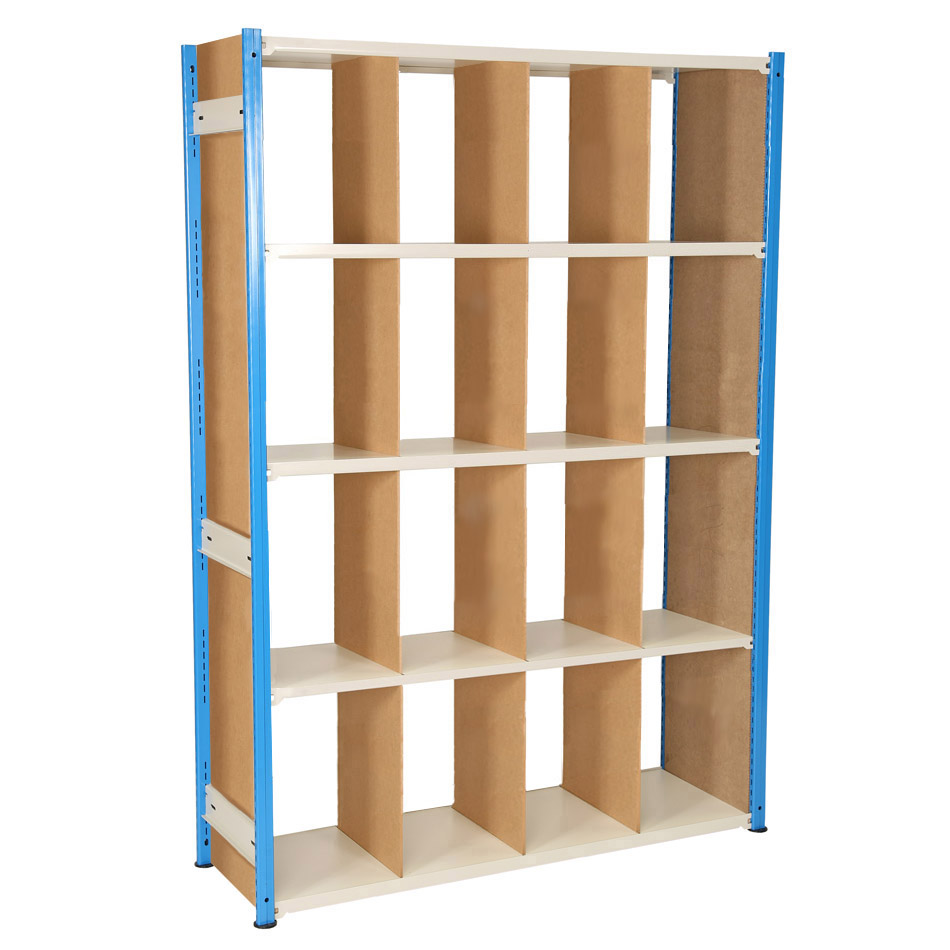

16 (4 x 4) 5 H400 x W300 x D380mm W1220 x D380mm
20 (4 x 5) 6 H320 x W300 x D380mm W1220 x D380mm
24 (4 x 6) 7 H240 x W300 x D380mm W1220 x D380mm

Note: Some bays will have unused slots in the post which can be left spare at the bottom or used to create rows of taller compartments.

5 shelf bays: Shelves placed at uniform 15 clear slot intervals = 2 spare slots
6 shelf bays: Shelves placed at uniform 12 clear slot intervals = 0 spare slots
7 shelf bays: Shelves placed at uniform 09 clear slot intervals = 4 spare slots


Delivery Cost

Delivery is FREE for orders over £500.00 ex-VAT

Smaller orders are subject to a charge according to the goods value (ex VAT), as below.

Goods Value (ex. VAT) Delivery Charge
£0 - £99.99 £15.00
£100 - £149.99 £20.00
£150 - £249.99 £30.00
£250 - £349.99 £35.00
£350 - £499.99 £40.00
£500+ FREE

The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.

Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Important note: Our Longspan, Type 1 and Trimline racking systems are normally delivered on large pallets, components (especially those over 2m in length) can be difficult to offload from the delivery lorry without a fork lift truck and may require hand-unloading. Please ensure that you are capable of off-loading and handling these large, heavy goods before ordering. If you have any questions regarding this please call us on 01993 779494. These are also typically delivered on large vehicles, if there are any access limitations to your site please let us know in advance.

Delivery Areas

Mainland UK – England, Wales and Southern Scotland.

Other UK – Please call for a quote if you live in any of the following areas:

BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50


Please call 01993 779494 if you would like to collect your order from our warehouse.

Get A Quote
Upload A Drawing or Sketch (Optional)
Upload A Photo (Optional)

Quotation Request

Use this form to ask us for a quote when you have a large or specific requirement for any of our products.

Supplying as much detail as possible will allow us to provide you with an accurate quote more quickly. If you have a drawing or sketch of any rooms or layouts then please use the drawing submission feature at the bottom of the form.

We will do our best to reply within 48 hours of your submission, however some quotes may take longer during busy periods.

For urgent requirements call our sales team on: 01993 779494.

Important Data Information:
The information that you submit will only be used by our company to deal with your quote request. No part of this information will be passed on to any 3rd parties unless you are supplying us with information regarding delivery instructions which our carriers and/or suppliers need to be aware of. If you would like any of your personal data removed after we have dealt with your enquiry please email us.

Sizing Information

Trimline Shelving Overall DimensionsSizing Guide: Medium Duty Trimline Shelving

To calculate the overall length of a shelving bay please add 40mm for each upright.

The table below shows the overall length of shelving runs in mm when using a single starter bay and subsequent add-ons. If you are unsure of how many units to buy to fit within a given space please call us on 01993 779494 to discuss your requirements.

For the overall depth of a shelving bay please add 25mm to the nominal size specified.

  Overall Run Lengths (mm)
Shelf Width 1 Bay 2 Bays 3 Bays 4 Bays 5 Bays 6 Bays 7 Bays 8 Bays 9 Bays 10 Bays
915mm 995 1950 2905 3860 4815 5770 6725 7680 8635 9590
1000mm 1080 2120 3160 4200 5240 6280 7320 8360 9400 10440
1220mm 1300 2560 3820 5080 6340 7600 8860 10120 11380 12640
1525mm* 1605 3170 4735 6300 7865 9430 10995 12560 14125 15690
1830mm* 1910 3780 5650 7520 9390 11260 13130 15000 16870 18740

*1525 & 1830mm widths require heavy duty beams trimline (widespan)
