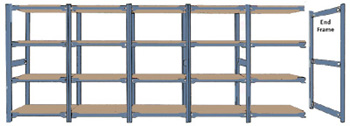

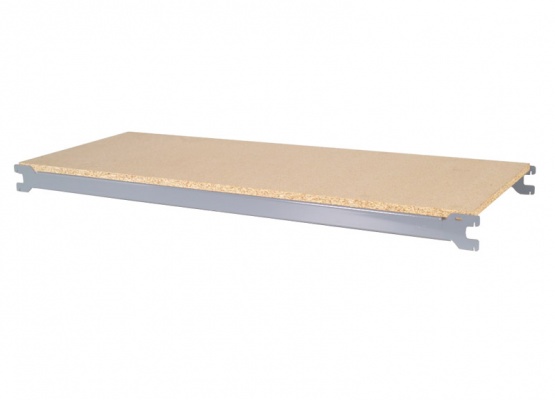

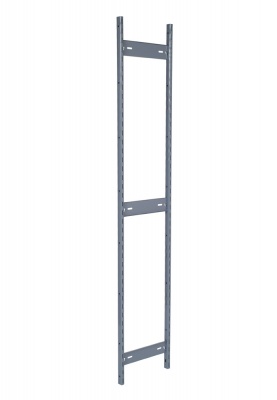

Order Type 1 end frames to make any size and configuration of heavy duty shelving to your own design. Shelves (sold separately) clip into both sides of the end frame so for a run of 3 bays you'll need 4 end frames. Each frame is supplied with 2 upright posts and the necessary number of post connectors depending on the height required.
- Heavy duty end frame
- 50mm height adjustment
- No nuts and bolts required
- Assembles in minutes
- Grey painted finish
- Range of sizes available

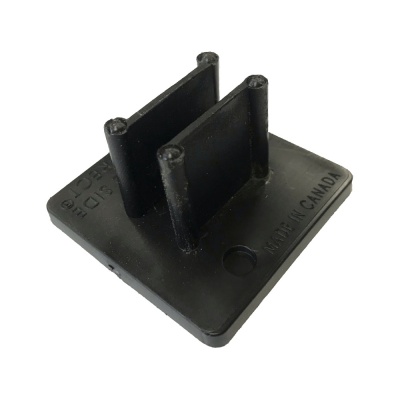

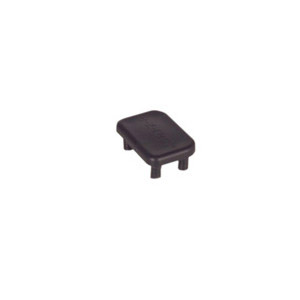

- Caps and feet NOT included with frames (available separately)
Frame Height | No. Post Connectors |
1525mm | 3 (+1 extra for 36" deep) |
1830mm | 3 (+1 extra for 36" deep) |
2135mm | 3 (+1 extra for 36" deep) |
2440mm | 4 (+1 extra for 36" deep) |
Delivery Cost
Delivery is FREE for orders over £500.00 ex-VAT
Smaller orders are subject to a charge according to the goods value (ex VAT), as below.
Goods Value (ex. VAT) | Delivery Charge | |
£0 - £99.99 | £15.00 | |
£100 - £149.99 | £20.00 |
£150 - £249.99 | £30.00 |
£250 - £349.99 | £35.00 | |
£350 - £499.99 | £40.00 | |
£500+ | FREE | |
The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.
Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.
Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.
Important note: Our Longspan, Type 1 and Trimline racking systems are normally delivered on large pallets, components (especially those over 2m in length) can be difficult to offload from the delivery lorry without a fork lift truck and may require hand-unloading. Please ensure that you are capable of off-loading and handling these large, heavy goods before ordering. If you have any questions regarding this please call us on 01993 779494. These are also typically delivered on large vehicles, if there are any access limitations to your site please let us know in advance.
Delivery Areas
Mainland UK – England, Wales and Southern Scotland.
Other UK – Please call for a quote if you live in any of the following areas:
BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50
Collection
Please call 01993 779494 if you would like to collect your order from our warehouse.
Sizing Guide: Heavy Duty Type 1 Shelving
To calculate the overall length of a shelving bay please add 40mm for each upright.
The table below shows the overall length of shelving runs in mm when using a single starter bay and subsequent add-ons.
For the overall depth of a shelving bay please add 25mm to the nominal size specified.
Shelf Width (Nominal) | 1 Bay | 2 Bays | 3 Bays | 4 Bays | 5 Bays | 6 Bays | 7 Bays | 8 Bays | 9 Bays | 10 Bays |
915mm | 995 | 1950 | 2905 | 3860 | 4815 | 5770 | 6725 | 7680 | 8635 | 9590 |
1220mm | 1300 | 2560 | 3820 | 5080 | 6340 | 7600 | 8860 | 10120 | 11380 | 12640 |
1525mm | 1605 | 3170 | 4735 | 6300 | 7865 | 9430 | 10995 | 12560 | 14125 | 15690 |
1830mm | 1910 | 3780 | 5650 | 7520 | 9390 | 11260 | 13130 | 15000 | 16870 | 18740 |
