Racking System For 20ft Shipping Container

Our Price:  £900.49(£1,080.59 Inc. VAT)
+
Shelf Depth

Part Code:  6BAY20FT-T1727230-3
Delivery:  3-5 Working Days

Availability:




This storage racking kit is designed specifically to rack out a 20ft shipping container with high quality, heavy duty shelving. Use it to convert your shipping container into a practical storage unit for the goods or achive materials that you need to store. Containers are often used as an affordable way to store things in a remote location, freeing up valuable on-site space. The container racking used within this package utilises E-Z-RECT shelving components that provide a strong and robust framework with fully adjustable shelves.

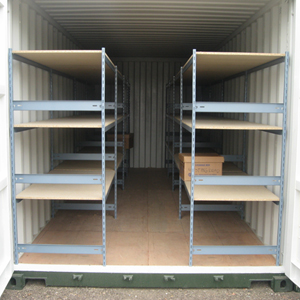

Now available with a choice of 3 shelf depths: The 762mm deep shelves (shown in photograph) are suitable for double depth archive box storage as shown in the diagram below. 610 and 457mm deep units provide less shelf space but creates a larger access aisle, this is most helpful when you need to access the container on a daily basis and if you have larger/bulkier items to store.

Each shelving bay comes with 3 individual shelves that can be adjusted in height to suit your exact requirements.

Click the drawing opposite to view an example layout drawing for the 762mm deep shipping container shelving solution, if you have a different sized container please call  01993 779494 for a bespoke quotation.

  • Complete shelving system for a 20ft shipping container
  • 3 shelf depth options.
  • 20ft with 762mm deep shelves = up to 576 archive boxes Racking For Containers
  • 6 bays supplied
  • Post height: 1830mm
  • Quick and easy boltless assembly
  • 3 shelves per bay
  • 300kg shelf loading (UDL)
  • Top caps & feet NOT included (available separately if required)
  • No nuts and bolts
Shelf Depth Approx. Central Gap/Aisle Space
762mm 750mm (As shown in photo)
610mm 1050mm
457mm 1350mm

What's included?

6 bays of shelving H1830mm, shelf size: W1830mm x D [your choice]mm with 3 shelves per bay - 300kg UDL per shelf.

All archive box quantities are based on our standard archive box size of H260 x W300 x D400mm.

Archive boxes are available, if required, at a cost of £1.50 each.

Please note: The container is shown for illustration purposes only, we do not supply shipping containers.

Delivery Cost

Delivery is FREE for orders over £400.00 ex-VAT

Smaller orders are subject to a charge according to the goods value (ex VAT), as below.

Goods Value (ex. VAT) Delivery Charge
£0 - £49.99 £6.95
£50 - £99.99 £9.95
£100 - £149.99 £14.95
£150 - £199.99 £19.95
£200 - £249.99 £24.95
£250 - £299.99 £29.95
£300 - £399.99 £34.95
£400+ FREE

The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.

Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Delivery Areas

Mainland UK – England, Wales and Southern Scotland.

Other UK – Please call for a quote if you live in any of the following areas:

BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50

Collection

Please call 01993 779494 if you would like to collect your order from our warehouse.

*
Name
*
Email Address
*
Contact Telephone
*
Business Name
*
Location/Postcode
*
Product/Project Description
Upload A Drawing or Sketch (Optional)
Upload A Photo (Optional)

Quotation Request

Use this form to ask us for a quote when you have a large or specific requirement for any of our products.

Supplying as much detail as possible will allow us to provide you with an accurate quote more quickly. If you have a drawing or sketch of any rooms or layouts then please use the drawing submission feature at the bottom of the form.

We will do our best to reply within 48 hours of your submission, however some quotes may take longer during busy periods.

For urgent requirements call our sales team on: 01993 779494.

Important Data Information:
The information that you submit will only be used by our company to deal with your quote request. No part of this information will be passed on to any 3rd parties unless you are supplying us with information regarding delivery instructions which our carriers and/or suppliers need to be aware of. If you would like any of your personal data removed after we have dealt with your enquiry please email us.

Type 1 Shelving Overall DimensionsSizing Guide: Heavy Duty Type 1 Shelving

To calculate the overall length of a shelving bay please add 40mm for each upright.

The table below shows the overall length of shelving runs in mm when using a single starter bay and subsequent add-ons.

For the overall depth of a shelving bay please add 25mm to the nominal size specified.

Shelf Width (Nominal) 1 Bay 2 Bays 3 Bays 4 Bays 5 Bays 6 Bays 7 Bays 8 Bays 9 Bays 10 Bays
915mm 995 1950 2905 3860 4815 5770 6725 7680 8635 9590
1220mm 1300 2560 3820 5080 6340 7600 8860 10120 11380 12640
1525mm 1605 3170 4735 6300 7865 9430 10995 12560 14125 15690
1830mm 1910 3780 5650 7520 9390 11260 13130 15000 16870 18740
2440mm 2520 5000 7480 9960 12440 14920 17400 19880 22360 24840
