Longspan Heavy Duty Racking 3000mm High
  Zoom
Longspan Heavy Duty Racking 3000mm HighLongspan Heavy Duty Racking 3000mm HighLongspan Heavy Duty Racking 3000mm HighLongspan Heavy Duty Racking 3000mm High

Longspan Heavy Duty Racking 3000mm High

Our Price:  £149.70(£179.64 Inc. VAT)
+
Shelf Size
No. Of Shelves
Bay Type

Part Code:  ARL396S3
Delivery:  3-5 Working Days

Overall width of this bay option (mm):  1070

Shelf Capacity (UDL Per level):  450kg

Availability:



Bulk Buy Savings - Mix & Match Any Longspan Bays

Order Qty 3 - 7 Bays 8+ Bays
Price Save 5% Save 10%


Heavy Duty: 6000kg overall bay capacityLongspan racking, available as both starter and add on bays in the most popular sizes for storage applications in warehouses, large stockrooms and factories. These heavy duty shelving racks are basically scaled down versions of pallet racking but for hand loading applications only.

Choose starter bays for individual standalone units or a combination of starter bays and add-ons to create a longer run of fixed racking. Available in a wide range of sizes to suit your application, simply choose the size and number of shelves you need and then add the relevant starter and add-on units to achieve your desired configuration. This 3 Metre high bay allows you to make the most of a higher ceiling but will require a step ladder to reach the top shelf/shelves. 60 posts slots are available at 50mm intervals, these let you position the shelves exactly where they are needed. If you are adding extra shelf levels, please note that each shelf support beam takes up 3 of these slots.

The overall bay width is shown above for each size option.

  • 3m high posts (approx. 9ft 10")
  • Longspan Information SheetQuick and simple to install
  • 18mm thick chipboard decking included
  • Heavy Duty: 6000kg overall bay capacity*

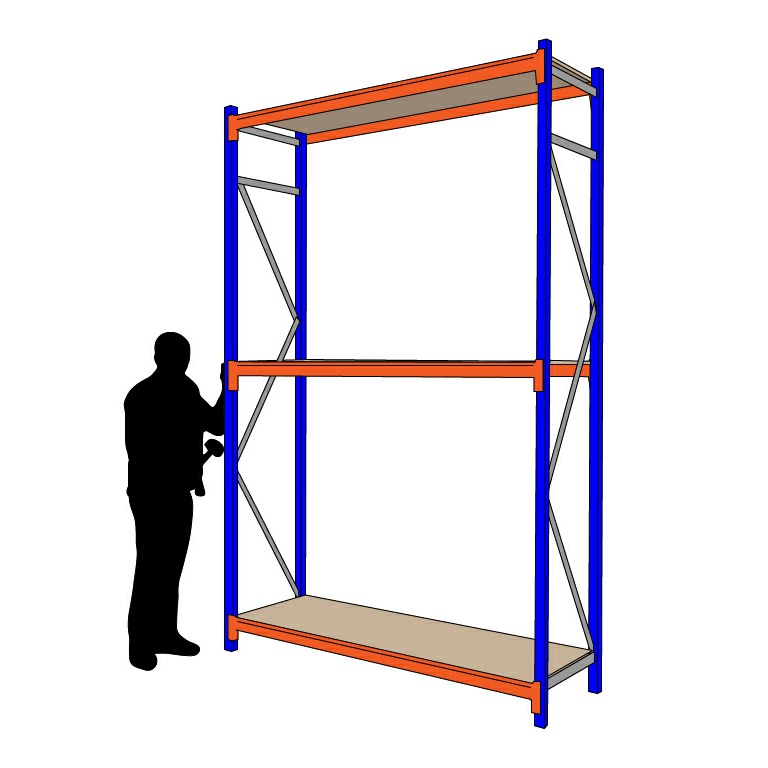

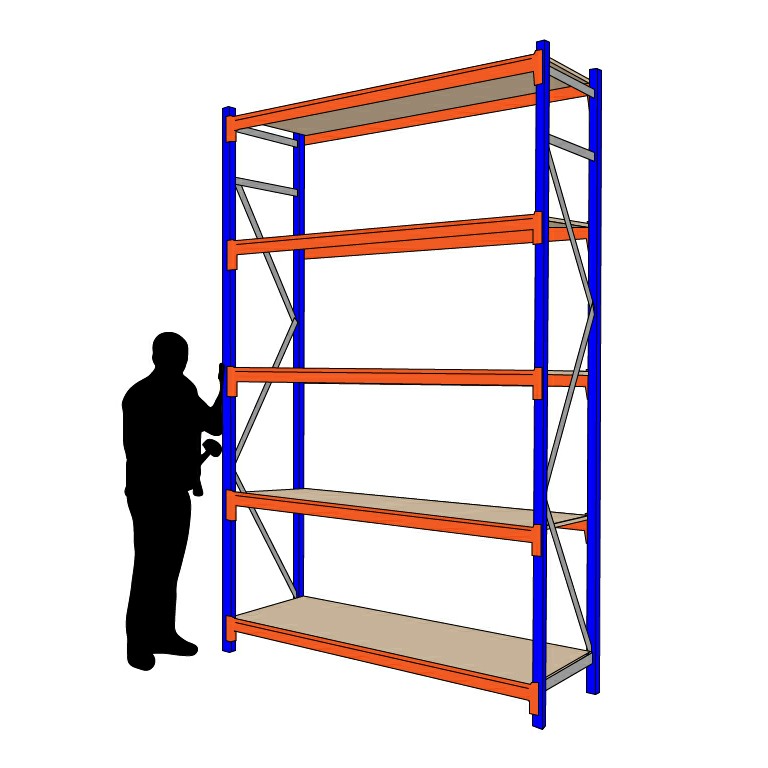

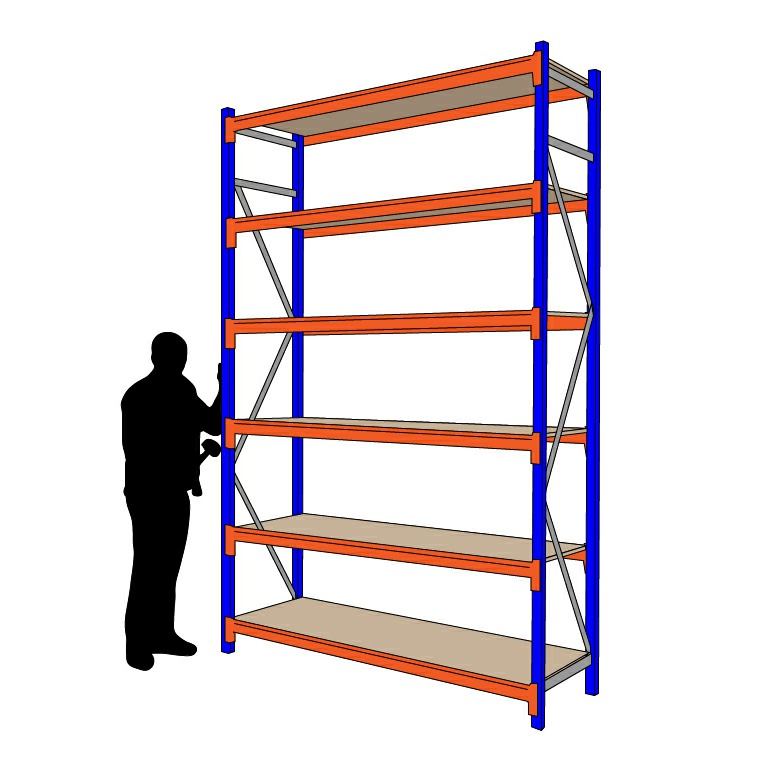

  • Choose from 3 to 6 shelves to suit your needs - please call for other configurations
  • Blue uprights and orange beams
  • Shelf load up to 450kg (UDL) per level
  • Heavy duty, high quality components
  • Full range of sizes available from stock
  • 2m and 2.5m high racking also available
  • Requires assembly - Instructions available here
Note:
Large chipboard decks (especially those over 2m in length) may be supplied in 2 pieces. Please contact us if you need single piece boards but this may attract a delivery & handling surcharge.

*Bay loading is subject to the first shelf being no more than 1000mm from the floor.

Delivery Cost

Delivery is FREE for orders over £400.00 ex-VAT

Smaller orders are subject to a charge according to the goods value (ex VAT), as below.

Goods Value (ex. VAT) Delivery Charge
£0 - £49.99 £6.95
£50 - £99.99 £9.95
£100 - £149.99 £14.95
£150 - £199.99 £19.95
£200 - £249.99 £24.95
£250 - £299.99 £29.95
£300 - £399.99 £34.95
£400+ FREE

The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.

Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Delivery Areas

Mainland UK – England, Wales and Southern Scotland.

Other UK – Please call for a quote if you live in any of the following areas:

BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50

Collection

Please call 01993 779494 if you would like to collect your order from our warehouse.

*
Name
*
Email Address
*
Contact Telephone
*
Business Name
*
Location/Postcode
*
Product/Project Description
Upload A Drawing or Sketch (Optional)
Upload A Photo (Optional)

Quotation Request

Use this form to ask us for a quote when you have a large or specific requirement for any of our products.

Supplying as much detail as possible will allow us to provide you with an accurate quote more quickly. If you have a drawing or sketch of any rooms or layouts then please use the drawing submission feature at the bottom of the form.

We will do our best to reply within 48 hours of your submission, however some quotes may take longer during busy periods.

For urgent requirements call our sales team on: 01993 779494.

Important Data Information:
The information that you submit will only be used by our company to deal with your quote request. No part of this information will be passed on to any 3rd parties unless you are supplying us with information regarding delivery instructions which our carriers and/or suppliers need to be aware of. If you would like any of your personal data removed after we have dealt with your enquiry please email us.

height Guide For Longspan Racking

Sizing Guide: Longspan Racking

Longspan Shelving Overall Dimensions

To calculate the overall length of a shelving bay please add 60mm for each upright.

The table below shows the overall length of shelving runs in mm that use a single starter bay and subsequent add-ons. If you have any doubts as to whether your new racking will fit please call us on 01993 779494 so that we can double-check the dimensions.

For the overall depth of a shelving bay please add 10mm to the nominal size specified.

Shelf Width (Nom.) 1 Bay 2 Bays 3 Bays 4 Bays 5 Bays 6 Bays 7 Bays 8 Bays
950mm 1070mm 2080mm 3090mm 4100mm 5110mm 6120mm 7130mm 8140mm
1500mm 1620mm 3180mm 4740mm 6300mm 7860mm 9420mm 10980mm 12540mm
1800mm 1920mm 3780mm 5640mm 7500mm 9360mm 11220mm 13080mm 14940mm
2250mm 2370mm 4680mm 6990mm 9300mm 11610mm 13920mm 16230mm 18540mm
2400mm 2520mm 4980mm 7440mm 9900mm 12360mm 14820mm 17280mm 19740mm
