Pallet Racking Kit - 3m High
Pallet Racking Kit - 3m High
Pallet Racking Kit - 3m High
Pallet Racking Kit - 3m High

Pallet Racking Kit - 3m High

(£0.00 Inc. VAT)
Part Code
7 Working Days

This 3 metre high 2 bay pallet racking starter kit enables you to store up to 12 standard sized pallets in a warehouse or factory environment. Extra strong frames and beams support loads of up to 1000kg per pallet (2000kg per level).

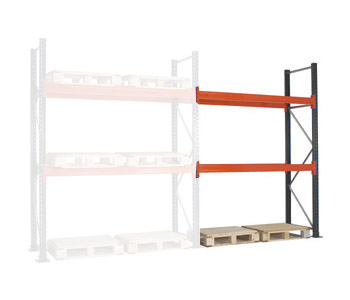

The 2 bay kit consists of 3 end frames and 4 pairs of beams. The 1 bay extension comes with 1 end frame and 2 pairs of beams and allows you to increase the length of the run to provide space for an extra 6 pallets.

Example: 1 x 2 bay kit + 3 x single extensions = room for up to 30 pallets.

  • 3m high heavy duty pallet racking
  • Available in 2 depths to suit your pallet size: Choose from 900 or 1100mm deep racks
  • Suitable for pallets up to 1m high
  • Store 12 standard pallets or 18 Euro pallets on a 2 bay starter kit
  • Store an extra 6 pallets (9 Euro) on every extension kit
  • End frames supplied ready built with foot-plates attached
  • Beam length: 2700mm
  • Depth: 900mm
  • Frame capacity 6,600kg (UDL) - based on 1st beam placed at a height of between 1000 & 1500mm
  • Safety locking pins included
  • Includes levelling plates/shims & floor fixing bolts
  • Slatted timber decks (as shown in example photo) available to order separately.


Extension bays can only be used as add-ons to a full starter bay, pallets not included. Requires professional installation.

A fork lift truck is required to offload upon delivery.

To fully utilise the maximum load capacities of these units we recommend using at least 3 bay runs.

Part Code Total Pallet Capacity Beam Loading (UDL) Overall Length
ARPRKIT3279-2BAY 12 2000kg 5680mm
ARPRKIT3279-1EXT 6 2000kg 2800mm

Other sizes and configurations also available, please contact us for further details.
