Longspan Heavy Duty Racking H2000mm
Longspan Heavy Duty Racking H2000mm
Longspan Heavy Duty Racking H2000mm
Longspan Heavy Duty Racking H2000mm
Longspan Heavy Duty Racking H2000mm
Longspan Heavy Duty Racking H2000mm

Longspan Heavy Duty Racking H2000mm

(£178.80 Inc. VAT)
Shelf Capacity (UDL Per level)
450 kg
 Qty 2 - 4 Bays 5 - 9 Bays 10+
Price Save 6% Save 8% Save 12%
Part Code
3-4 Working Days
Large Pallet Delivery

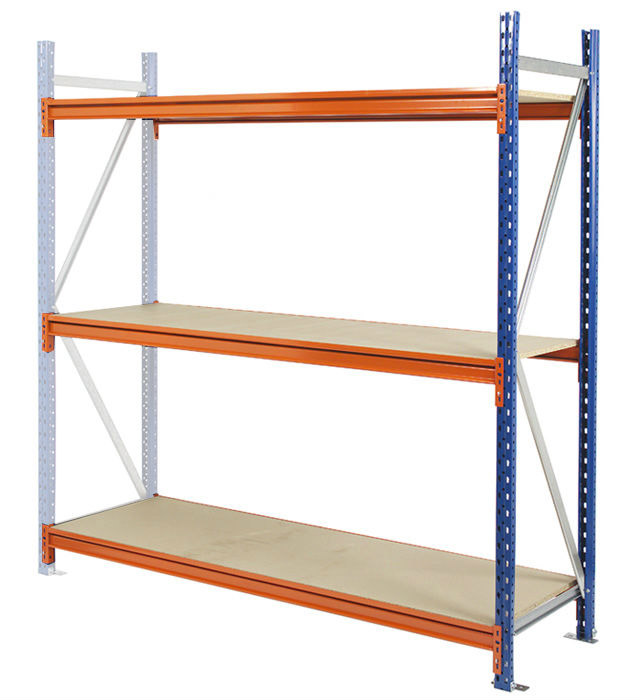

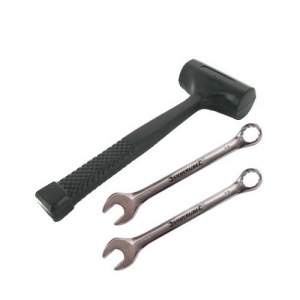

Longspan Information SheetLongspan racking systems can be used in stockrooms, workshops, factories and warehouses alike for the storage of large, bulky and heavy items. These heavy duty shelving bays are basically scaled down versions of pallet racking but for hand loaded applications only. Although the end frames need to be assembled, doing so is easy (especially if you purchase our Longspan Assembly Kit) and will give you a great appreciation of the strength and build quality of the components used. Once built, you can confidently load up the shelves to make best use of your new racking system.

Choose starter bays for individual standalone units or a combination of starter bays and add-ons to create a longer run of fixed racking. This 2 Metre high bay is perfect if you need quick and easy access to the highest shelf without using a step ladder. With 40 slots set at 50mm intervals you can position the shelves exactly where you need them. If you are adding extra shelf levels, please be aware that each beam takes up 3 of these slots.

Important note: These are our best selling heavy duty racks and are used in a wide variety of applications. However, we have had a few customers who haven't realised the size and weight of the components used to build the units - resulting in problems off-loading delivery vehicles. Typically, Longspan racking is delivered in component form on large pallets, these will need to be unloaded from the lorry via your own fork lift truck or the driver may need help manually unloading the delivery by hand. Please ensure that you have the capability (staff and/or equipment) to receive such large deliveries before ordering, if you have any questions regarding this please call us on 01993 779494.

The overall bay width is shown above for each size option.

  • 2m high racking bay (approx. 6ft 6")
  • Heavy Duty: 6000kg overall bay capacity*
  • Quick and simple to install
  • Chipboard decking included (18mm thick)
  • Choose from 3, 4 or 5 shelf levels
  • Blue uprights and orange beams
  • Shelf load up to 450kg (UDL) per level
  • Large range of sizes available from stock
  • Requires assembly - Instructions available here

Due to ongoing supply problems we cannot guarantee that the post caps shown in the photo will be included with your order.

Large chipboard decks (especially those over 2m in length) may be supplied in 2 pieces. Please contact us if you need single piece boards but this may attract a delivery & handling surcharge.

*Bay capacity is subject to the first level being less than 1000mm from the floor.


Delivery Cost

Delivery is FREE for orders over £500.00 ex-VAT

Smaller orders are subject to a charge according to the goods value (ex VAT), as below.

Goods Value (ex. VAT) Delivery Charge
£0 - £99.99 £15.00
£100 - £149.99 £20.00
£150 - £249.99 £30.00
£250 - £349.99 £35.00
£350 - £499.99 £40.00
£500+ FREE

The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.

Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.

Important note: Our Longspan, Type 1 and Trimline racking systems are normally delivered on large pallets, components (especially those over 2m in length) can be difficult to offload from the delivery lorry without a fork lift truck and may require hand-unloading. Please ensure that you are capable of off-loading and handling these large, heavy goods before ordering. If you have any questions regarding this please call us on 01993 779494. These are also typically delivered on large vehicles, if there are any access limitations to your site please let us know in advance.

Delivery Areas

Mainland UK – England, Wales and Southern Scotland.

Other UK – Please call for a quote if you live in any of the following areas:

BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50


Please call 01993 779494 if you would like to collect your order from our warehouse.

Get A Quote
Upload A Drawing or Sketch (Optional)
Upload A Photo (Optional)

Quotation Request

Use this form to ask us for a quote when you have a large or specific requirement for any of our products.

Supplying as much detail as possible will allow us to provide you with an accurate quote more quickly. If you have a drawing or sketch of any rooms or layouts then please use the drawing submission feature at the bottom of the form.

We will do our best to reply within 48 hours of your submission, however some quotes may take longer during busy periods.

For urgent requirements call our sales team on: 01993 779494.

Important Data Information:
The information that you submit will only be used by our company to deal with your quote request. No part of this information will be passed on to any 3rd parties unless you are supplying us with information regarding delivery instructions which our carriers and/or suppliers need to be aware of. If you would like any of your personal data removed after we have dealt with your enquiry please email us.

Sizing Information

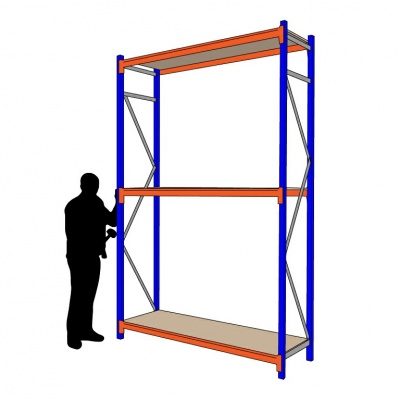

height Guide For Longspan Racking

Sizing Guide: Longspan Racking

Longspan Shelving Overall Dimensions

To calculate the overall length of a shelving bay please add 60mm for each upright. Please also allow 30mm per end of each run for the floor fixing feet.

The table below shows the overall length of shelving runs in mm that use a single starter bay and subsequent add-ons. If you have any doubts as to whether your new racking will fit please call us on 01993 779494 so that we can double-check the dimensions.

For the overall depth of a shelving bay please add 10mm to the nominal size specified.

Shelf Width (Nom.) 1 Bay 2 Bays 3 Bays 4 Bays 5 Bays 6 Bays 7 Bays 8 Bays
950mm 1070mm 2080mm 3090mm 4100mm 5110mm 6120mm 7130mm 8140mm
1500mm 1620mm 3180mm 4740mm 6300mm 7860mm 9420mm 10980mm 12540mm
1800mm 1920mm 3780mm 5640mm 7500mm 9360mm 11220mm 13080mm 14940mm
2250mm 2370mm 4680mm 6990mm 9300mm 11610mm 13920mm 16230mm 18540mm
2400mm 2520mm 4980mm 7440mm 9900mm 12360mm 14820mm 17280mm 19740mm
